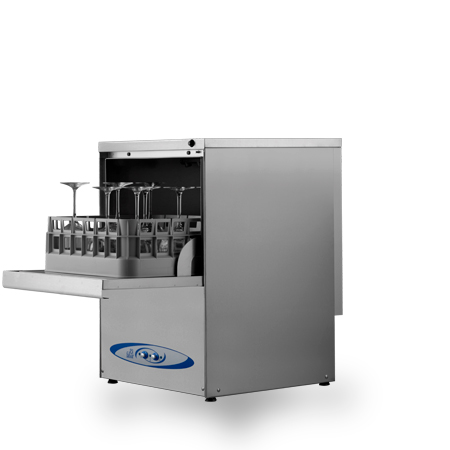

Q352I

  • Body in 18/10 Aisi 304 stainless steel, double wall
  • Washing pump Hp.0,21
  • Built-in steel boiler equipped with safety thermostat
  • Tank electrical resistance
  • Automatic tank loading
  • Security door
  • Brightener dispenser
  • Construction according to CE regulations

Technical features

Dimensions mm W 426 - D 485 - H 600
Basket mm 350 x 350
Hourly production nr. 30
Duration of the cycle min. 2
Voltage V/Hz 230 / 50 / 1
Total rating W 2560
Boiler heating element W 2400
Tank electrical resistance W 1600
Motor washing pump W 160
Boiler capacity Lt 3
Tank capacity Lt 9
Water use Lt (2 bar) 2,2
Water supply pressure bar (min-max) 2-4
Rinse operating temperature °C 85
Glass basket nr. 2
Cutlery basket nr. 1

Docs

Information and technical sheets available for Q352I model.

Tech sheet Q352I
